Floating Joint / Rod End Aligner Cylinder Mounting for Airmax Cylinders

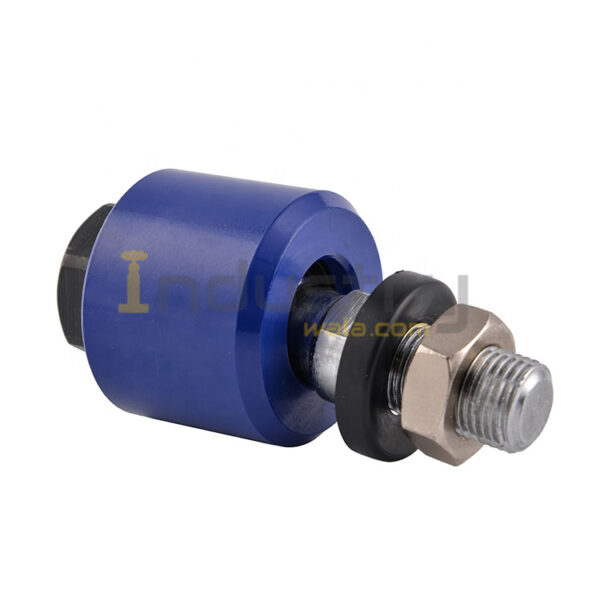

Floating joint / Rod Aligner Floating joint / Rod Aligner are coupled to the load and threaded onto the pneumatic cylinder’s rod-end. They allow for off-centering or loss of parallel accuracy between the cylinder and the driven body. Typically, they have a rotational angle range and linear deviation specification. This allows for a reduced installation time and cost as other components (and installation) don’t require strict tolerances. They are compact, simple, and rigid allowing for repetitive usage of both compression and tension forces. FAQs – Floating Joint / Rod End Aligner Cylinder Mounting for Airmax Cylinders What is the purpose of a Rod End Aligner Cylinder in pneumatic systems? This mounting provides a flexible connection that allows the cylinder rod to align automatically, reducing misalignment and ensuring smooth operation in pneumatic applications. How does the floating joint enhance cylinder performance? It absorbs angular misalignment and reduces side loads on the cylinder rod, extending the cylinder’s life and maintaining consistent motion. Is this cylinder mounting suitable for industrial automation? Yes, it is ideal for use in automation machinery, material handling systems, and other industrial setups where precise and reliable cylinder movement is required. Can this rod end aligner mounting accommodate different Airmax cylinder sizes? Yes, it is compatible with various Airmax cylinder models, offering flexibility for multiple installation configurations. SKU: 924c5ffab566 Categories: Cylinder Mounting and Accessories, Cylinders and Mountings, Pneumatics Tags: floating joint, rod aligner, rod aligner cylinder mounting, rod end aligner
