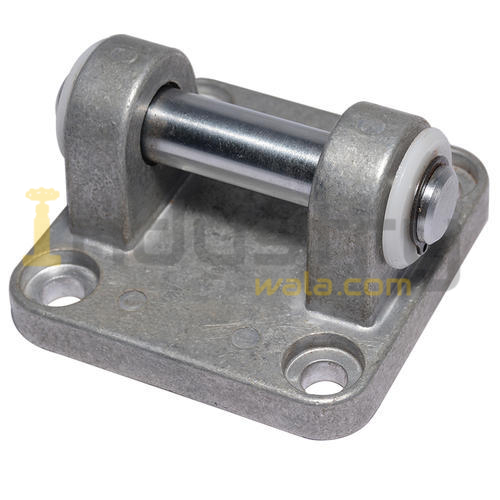

Female Clevis Mounting Cylinder Mounting for Airmax Cylinders

Clevis Clevis attachments can be mounted directly to the cap-end and are bolt mounted to the cylinder. Depending on the coupling the clevis will mount to, a female or male style coupling can be used. The bolts securing the clevis attachment to the cylinder is designed to handle the shear forces generated from the opposing forces generated during cylinder actuation. In applications where slight misalignment is expected a spherical bearing can be used to relieve the rod of stress. FAQs – Female Clevis Mounting Cylinder Mounting for Airmax Cylinders What is the purpose of this Cylinder Mounting accessory? This female clevis mounting provides a secure pivot point for Airmax cylinders, ensuring smooth and accurate linear motion in pneumatic applications. How does a female clevis enhance cylinder performance? It maintains proper alignment, reduces side loads, and ensures consistent operation, improving the efficiency and lifespan of the cylinder. Is this cylinder mounting suitable for industrial machinery? Yes, it is designed for heavy-duty use, providing reliable support in automation systems, material handling equipment, and other industrial pneumatic setups. Can this mounting be used with different cylinder sizes? Yes, the female clevis mounting is versatile and compatible with various Airmax cylinder models, allowing flexible installation options. SKU: d4ecfb9b9a6d Categories: Cylinder Mounting and Accessories, Cylinders and Mountings, Pneumatics Tags: female clevis, female clevis for cylinder
