Clevis Foot Mounting Cylinder Mounting for Airmax Cylinders

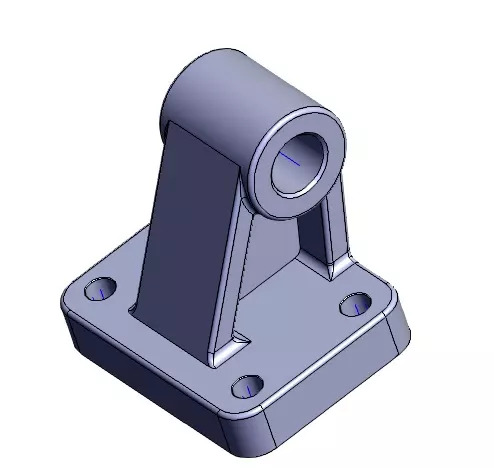

Clevis Clevis foot mounting attachments can be mounted directly to the cap-end and are bolt mounted to the cylinder. Depending on the coupling the clevis will mount to, a female or male style coupling can be used. The bolts securing the clevis attachment to the cylinder is designed to handle the shear forces generated from the opposing forces generated during cylinder actuation. In applications where slight misalignment is expected a spherical bearing can be used to relieve the rod of stress. FAQs – Clevis Foot Mounting Cylinder Mounting for Airmax Cylinders: 1. How does a clevis foot mount improve stability in pneumatic cylinder installations?A clevis foot mount offers strong base support, ensuring secure cylinder mounting and minimizing vibrations during cylinder operation for long-lasting performance. 2. Is this clevis foot mounting compatible with different Airmax cylinder models?Yes, it is designed to fit a wide range of Airmax cylinders, providing versatile cylinder mounting options for various industrial applications. 3. Does the clevis foot mounting help in easy alignment of the pneumatic cylinder?Absolutely. Its precise design allows accurate alignment, ensuring smooth linear motion and reliable functioning of the cylinder mounting system. 4. Can the clevis foot mounting be installed quickly in existing setups?Yes, the simple bolt-on design enables fast installation, making it convenient to integrate into new or existing cylinder mounting arrangements. SKU: c2b3eeddc87d Categories: Pneumatics, Cylinder Mounting and Accessories, Cylinders and Mountings Tags: clevis foot mounting, clevis for cylinder, foot clevis, foot clevis mounting
