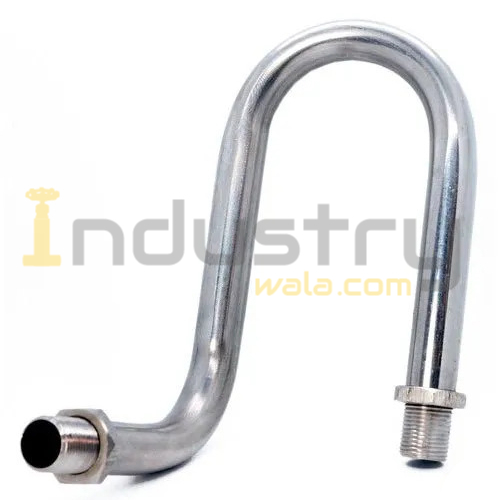

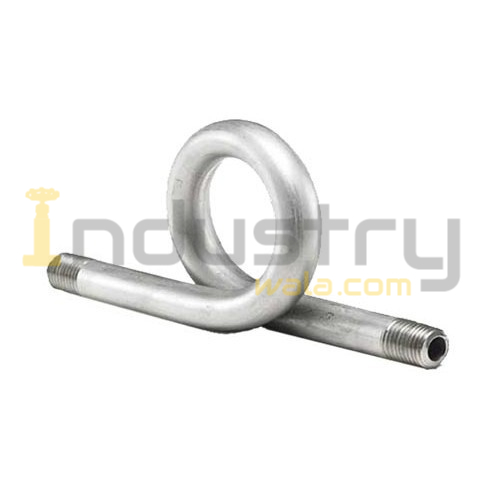

What is a Siphon Pipe? A siphon pipe in short is a protecting tool for a pressure sensor. It protects the pressure sensors from unwanted hot temperature agents such as stem etc. Moreover, it also safeguards the pressure sensor from unwanted rapid pressure changes. These rapid changes can damage the pressure sensing mechanism working with spring. Siphon tubes are a cheap solution to increase the life of pressure sensors. Saving them from high temperatures. Types of Siphon Pipe? Siphon pipes can be differentiated on the basis of their material and their shape. Most commonly stainless steel siphon tubes are used. They come in variety of grades such as stainless 202, 304 and 316 grades. One can find these tubes also in WCB material and carbon steel forging material. Boilers are required to have a pressure meter with an IBR certified syphon tube. Siphon tubes can also made in other alloy materials. Siphon tubes are also fabricated in different shapes. Most common are Q type and U type. These come in either threaded ends or butt welded ends for carbon steel material. These tubes can be fitted with additional coils for longer ends. User decides upon the design of the tube as per the space available. You can check SS 304 Siphon Tube Q type here. FAQs for SS 304 Siphon Pipe U Type: How does a siphon pipe help protect pressure gauges in steam or fluid systems?A siphon pipe protects pressure gauges by creating a cooling loop that prevents direct contact with high-temperature steam, ensuring accurate readings and extending gauge life. Can an SS 304 siphon pipe be used in both steam and chemical applications?Yes, an SS 304 siphon pipe is suitable for steam, air, and many chemical applications due to its corrosion resistance, durability, and ability to withstand harsh operating conditions. How do I choose between 1/2″ and 3/8″ sizes in a siphon pipe?Selecting the right siphon pipe size depends on your pressure gauge connection and system requirements; 1/2″ is typically used for larger industrial gauges, while 3/8″ fits compact setups. What maintenance is required for an SS 304 siphon pipe in pressure systems?Maintenance of a siphon pipe includes checking for blockages, ensuring the loop is free from scale buildup, and verifying proper sealing to maintain accurate pressure readings. SKU: 947e55e7c411 Categories: Gauge Accessories, Gauges & accessories Tags: gauge tube, pressure gauge pipe, pressure gauge tube, ss syphon tube, stainless steel syphon tube, syphon tube, syphon tube pressure gauge, syphon tube u type, u type
