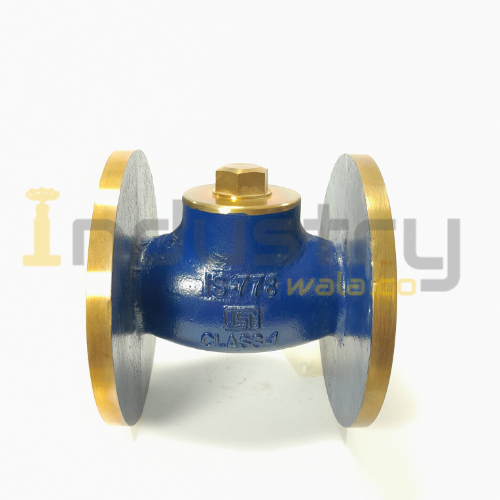

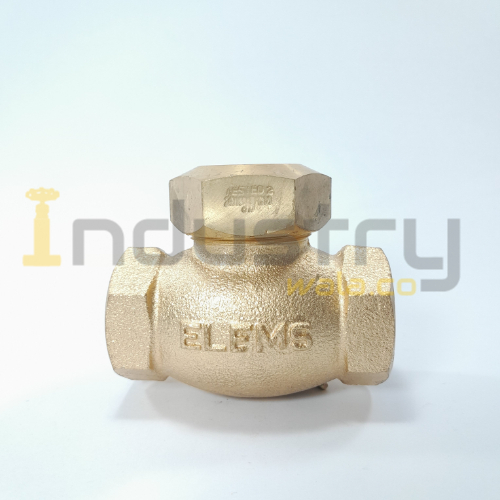

Gun Metal / Brass Horizontal Check Valve ISI Marked Screwed / Flange End

A check valve, also called a one-way valve, is a device that allows fluid to flow in only one direction. The primary purpose of a check valve is to prevent backflow in the system. The Brass Horizontal Check Valve ISI is widely used in industrial and water pipeline systems due to its reliable performance and certified quality. Check valves are cost-effective, efficient, and simple solutions to prevent flow reversal. Backflow can cause contamination and damage upstream equipment, which is why using a Brass Horizontal Check Valve is essential in many applications. For example, in sewer systems, a non-return valve ensures waste flows out but does not re-enter the pipeline. Check Valve Types Check valves operate differently depending on their design. The most common type is the spring-loaded in-line check valve, but several other types are used based on application needs. Spring-Loaded In-Line Check Valve In-line spring-loaded check valves have a simple and efficient design. When fluid enters the valve, it must have enough pressure to overcome the spring force and cracking pressure. This opens the disc and allows flow. When pressure drops or reverses, the spring pushes the disc back to seal the valve. This design ensures quick response and helps prevent pressure surges in pipelines. Ball Check Valve A ball check valve uses a free-floating or spring-loaded ball resting on a conical seat. When inlet pressure exceeds the cracking pressure, the ball moves away from the seat, allowing flow. When pressure decreases or reverses, the ball returns to the seat, stopping backflow effectively. Lift Check Valve A lift check valve consists of a guided disc that lifts off the valve seat when sufficient pressure is applied. It requires enough force to overcome gravity or spring resistance. The design ensures proper alignment for effective sealing. In many cases, the fluid is forced to change direction, making it suitable for controlled flow applications. Swing Check Valve Swing check valves, also known as tilting-disc or flapper valves, have a hinged disc that swings open with forward flow and closes when flow stops or reverses. Proper installation is important to ensure gravity helps in closing the valve. Dual disc check valves feature two semicircular doors that operate independently for improved efficiency. Why Choose Brass Horizontal Check Valve ISI? The Brass Horizontal Check Valve ISI and gun metal horizontal check valve options are known for their durability, corrosion resistance, and long service life. These valves are ideal for water supply systems, industrial pipelines, and general fluid handling applications. If you are planning to buy brass horizontal check valve ISI, this valve ensures dependable backflow prevention, easy installation, and compliance with ISI standards for quality and safety. FAQs – Gun Metal / Brass Horizontal Check Valve ISI Marked Screwed / Flange End: What is the application of a non IBR boiler check valve in industrial systems?A Brass Horizontal Check Valve ISI is designed to prevent backflow in pipelines, ensuring smooth and safe operation in heating, water, and steam applications without the need for IBR certification. How does a non IBR boiler horizontal check valve improve flow efficiency?A Brass Horizontal Check Valve ISI allows unidirectional flow, reducing pressure drop and maintaining consistent fluid flow in industrial and residential piping systems.| Can a non IBR boiler check valve be installed on both screwed and flange ends?Yes, a Brass Horizontal Check Valve ISI is versatile and can be installed on both screwed and flange connections, providing flexibility for various piping layouts. Is the non IBR boiler horizontal check valve suitable for high-pressure and hot water applications?Yes, a Brass Horizontal Check Valve ISI is designed to handle high-pressure and hot water systems efficiently, ensuring long-lasting performance and leak-free operation. SKU: 635b5855389f Categories: Non IBR Boiler Valves, Non IBR Non Return / Check Valves Tags: brass, brass check valve, brass nrv, brass valve, brass valves, check valve, gun metal, gun metal valves, isi marked valve, non return, nrv, water valve
