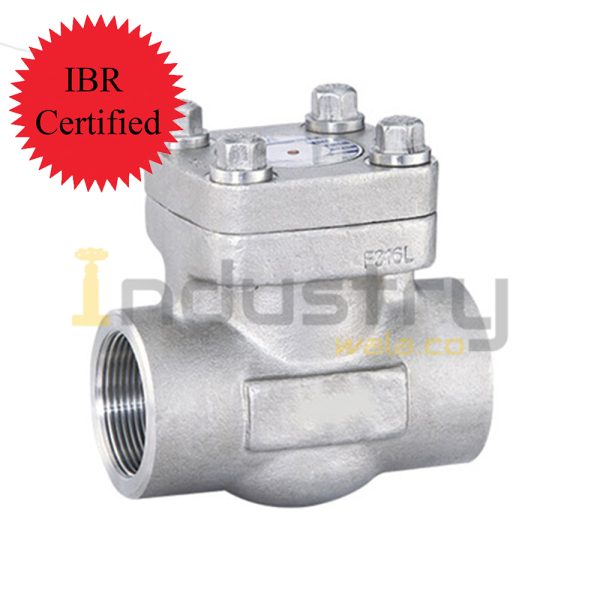

Forged Steel A-105 IBR Certified Check Valve Class 800#

ANSI Class 800 Ball Valves are covered in API 608. Class 800 is not a listed class designation, but is an intermediate class number widely used for socket welding and threaded end compact valves. Suitable for use across Petrochemical, Steam, Mining and Industrial applications. All sizes for Class 800 ball valves comply with ASME B16.34 and API 608 standards. Available extended socket weld and screwed ends allow welding into the piping without disassembly. Each valve of Class 800 ball valve is tested to API 598, and all valves comply with API 607 6th Edition for Fire-Safe performance. Class 800 ball valves are made of forged steel, to avoid the risk of leakage from the valve body. Features: Anti-static, Blowout-proof stem, Lockable at full open and close position, 2 PC or 3PC body Design: ASME B16.34/API 608/BS 5351/ISO 17292 Test: API 598 End Connections • BSP thread: ISO228 • Socket Weld : ASME B16.11 FAQs – Forged Steel A-105 IBR Certified Check Valve Class 800# What is a Forged Steel A-105 IBR Certified Check Valve Class 800# used for in piping systems? A Forged Steel A-105 IBR Certified Check Valve Class 800# is used to prevent backflow in high-pressure pipelines, ensuring unidirectional flow in steam, oil, gas, and chemical systems while meeting IBR compliance standards. Is the Forged Steel A-105 IBR Certified Check Valve suitable for extreme high-pressure applications? Yes, the Forged Steel A-105 IBR Certified Check Valve Class 800# is designed for extreme high-pressure service, offering robust construction, reliable sealing, and dependable backflow prevention in demanding industrial and boiler environments. How does the IBR Certified Check Valve improve safety in high-pressure steam and boiler systems? The IBR Certified Check Valve automatically prevents reverse flow, protecting equipment from pressure surges, water hammer, and backflow damage, ensuring safe and compliant operation in IBR-regulated systems. Can the Forged Steel A-105 IBR Certified Check Valve be installed in IBR-approved boiler pipelines? Yes, the Forged Steel A-105 IBR Certified Check Valve Class 800# is fully approved for IBR-regulated boiler, steam, and high-pressure piping networks where certified, code-compliant valves are mandatory for legal and safe operation. SKU: 13688b3289ab Categories: IBR Certified Boiler Valves, IBR Non Return / Check Valves Tags: a 105, a105, check valve, class 800, forged steel, fs, handle valve, IBR, ibr certified
