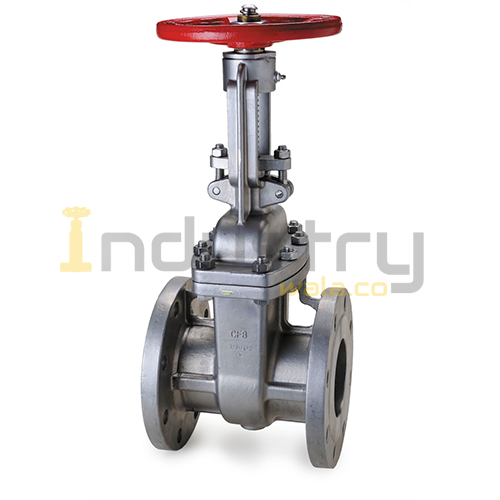

Cast Steel IBR Certified Gate Valve Class 300#

Cast Steel Gate Valve Cast steel gate valves offer the ultimate in dependable service for steam, air, gas, oil, oil vapor, and high pressure installations. All have straight-through ports to assure minimum turbulence, erosion, and resistance to flow. They are available in a wide variety of trims. The cast steel gate valves are on-off valves manufactured according to API, ANSI, ASME standard, for industrial applications. Product Features: 1. All the Seat faces are hardfaced, ground, and lapped to a mirror finish to ensure the reliable sealing performance. 2. Outside screw and yoke, bolted bonnet , flexible or solid wedge, rising stem with top sealing. 3. Body: Body is cast to provide liberal strength to meet operating conditions and to permit unobstructed flow. Turbulence, erosion and pressure drop are minimized. 4. Integral Yoke & Bonnet: Some designs incorporate a two-piece bonnet and yoke. All bonnet assemblies are cast and finished to the same exacting tolerances as the bodies for accurate alignment of stems and ease of sealing. Bonnet joint varies from flat face gasket-joint to ring-type bonnet joint, depending on class. 5. Seat Rings: Seat rings are seal welded to eliminate leak path behind rings and for long trouble-free service. The surfaces are precision ground to fit accurately with the disc. 6. Disc: Relia one piece flexible disc provides accurate alignment of mating seating surfaces so the valve can absorb piping strains without leakage. Also, it avoids any tendency to stick in the seated position. 7. Stem: The tee-head disc-stem connection prevents lateral strain on the stem for smooth, easy operation. Accurately cut threads engage the yoke sleeve for positive control of disc position. FAQs – Cast Steel IBR Certified Gate Valve Class 300#: How does a Cast Steel IBR Certified Gate Valve differ from a globe valve in flow control applications? A Cast Steel IBR Certified Gate Valve provides full bore, unrestricted flow with minimal pressure drop compared to a globe valve, making this gate valve ideal for on/off service in steam and boiler systems, while a globe valve is better suited for throttling and flow regulation applications. Is a Cast Steel Gate Valve Class 300# more suitable than a globe valve for high-pressure steam lines? Yes, a Cast Steel Gate Valve Class 300# offers superior performance in high-pressure steam applications up to 50 bar compared to a globe valve, as the gate valve design minimizes turbulence and pressure loss, whereas a globe valve creates higher resistance due to its internal geometry. Does a Cast Steel IBR Gate Valve require less maintenance than a globe valve in boiler installations? A Cast Steel IBR Gate Valve typically requires less frequent maintenance than a globe valve because it operates in fully open or closed positions, reducing wear on seating surfaces, while a globe valve experiences more wear when used for continuous throttling in boiler feed and condensate systems. Can a Cast Steel Gate Valve Class 300# replace a globe valve in IBR certified boiler piping systems? A Cast Steel Gate Valve Class 300# can replace a globe valve for isolation and shutoff purposes in IBR certified systems, but if flow modulation is required, a globe valve remains the preferred choice due to its superior throttling capabilities compared to a gate valve. SKU: 2384632b294a Categories: Gate / Globe Valves, IBR Ball / Gate / Globe Valves, IBR Certified Boiler Valves, IBR Gate / Globe Valves Tags: cast steel gate valve, cast steel valve, class 150, cs gate valve, gate valve, gate valve for steam, IBR, ibr certified, steam gate valve, steam valve
