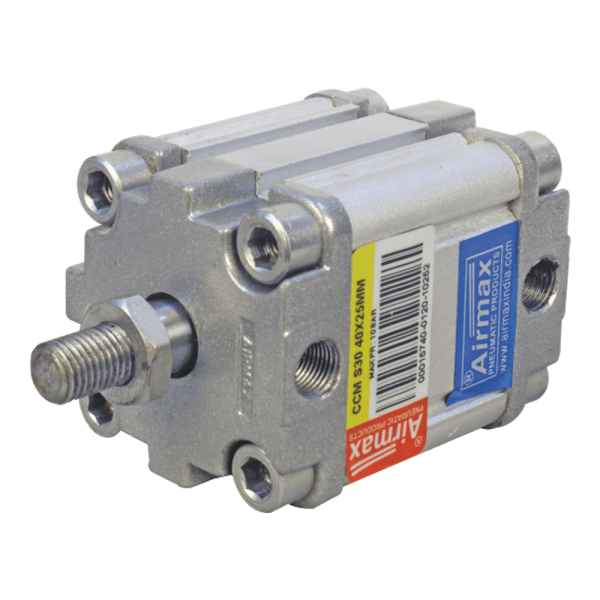

Airmax CCF/CCM Pneumatic Cylinder Double Acting

The Airmax CCF CCM Pneumatic Cylinder is a mechanical device that produces force using energy from compressed air. Pneumatic cylinders consist of a piston, piston rod, and cylinder body. When air enters one side of the cylinder, internal pressure increases, causing the piston to move in a specific direction. The piston rod then transmits this force to perform mechanical work. Widely used in industrial automation, the Airmax CCF CCM Pneumatic Cylinder is known for its simplicity, efficiency, and cost-effectiveness. If you are planning to buy Airmax CCF CCM pneumatic cylinder, it is a reliable solution for linear motion applications. Types of Pneumatic Cylinders: Double-Acting Pneumatic Cylinder The Airmax CCF CCM Pneumatic Cylinder in double-acting type uses compressed air to move the piston in both directions (extension and retraction). Air entering the cap-end port pushes the piston forward (extension) Air exits from the rod-end port Air entering the rod-end port retracts the piston Advantages: Full control over piston movement Consistent force throughout the stroke Suitable for high-speed and continuous operations Consideration:Double-acting cylinders use more compressed air and are not ideal for fail-safe applications requiring a default position. Single-Acting Pneumatic Cylinder A single-acting version of the Airmax CCF CCM Pneumatic Cylinder uses compressed air for one-way motion, while a spring returns the piston. Advantages: Suitable for fail-safe applications Lower air consumption Limitations: Limited stroke length Uneven force due to spring resistance Working Principle: In the Airmax CCF CCM Pneumatic Cylinder, compressed air creates pressure inside the cylinder, moving the piston and generating linear motion. This motion is transferred via the piston rod to perform tasks like pushing, pulling, lifting, or positioning components. Cushioning in Pneumatic Cylinders The piston in a pneumatic cylinder can move at high speed, causing impact at the end caps. To reduce this: Cushioning is provided at both ends It slows down the piston before impact Reduces noise, vibration, and wear Prevents piston rebound for smoother operation Applications: The Airmax CCF CCM Pneumatic Cylinder is widely used in: Industrial automation systems Packaging and assembly lines Material handling equipment Machine tools and manufacturing units The Airmax CCF CCM Pneumatic Cylinder is an essential component for efficient and reliable linear motion in industrial systems. With its robust design, smooth operation, and versatility, it is a preferred choice across multiple industries. If you’re looking to upgrade your system, it’s a smart decision to buy Airmax CCF CCM pneumatic cylinder for long-lasting performance and efficiency. Link to the catalogue FAQs – Airmax CCF/CCM Pneumatic Cylinder Double Acting: What is the application of the Airmax CCF CCM Pneumatic Cylinder in industrial systems?The Airmax CCF CCM Pneumatic Cylinder is widely used for linear motion tasks such as pushing, pulling, lifting, and clamping in automated machinery and production lines. How does the Airmax CCF CCM Pneumatic Cylinder ensure smooth double acting performance?The Airmax CCF CCM Pneumatic Cylinder operates using compressed air for both extension and retraction, delivering consistent and controlled motion for precision applications. Is the Airmax CCF CCM Pneumatic Cylinder suitable for heavy-duty operations?Yes, the Airmax CCF CCM Pneumatic Cylinder is designed with robust construction, making it reliable for heavy-duty and continuous industrial operations. What are the advantages of using the Airmax CCF CCM Pneumatic Cylinder in automation?The Airmax CCF CCM Pneumatic Cylinder offers high efficiency, low maintenance, easy installation, and long service life, enhancing overall system productivity. SKU: aae2fa048562 Categories: Cylinders, Cylinders and Mountings, Pneumatics Tags: air cylinder, airmax ccf, airmax ccm, airmax cylinder, ccf cylinder, ccm cylinder, compact cylinder, cylinder, double acting cylinder, mini cylinder, Pneumatic cylinder
