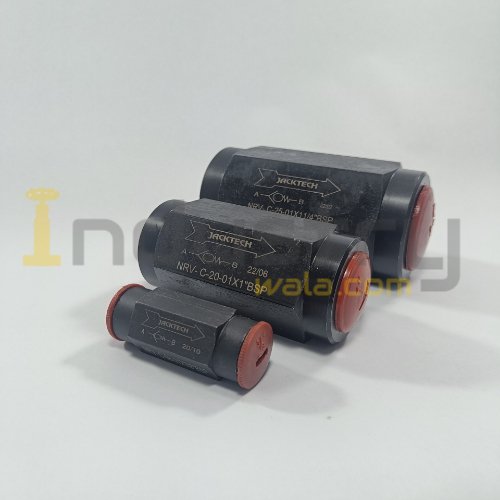

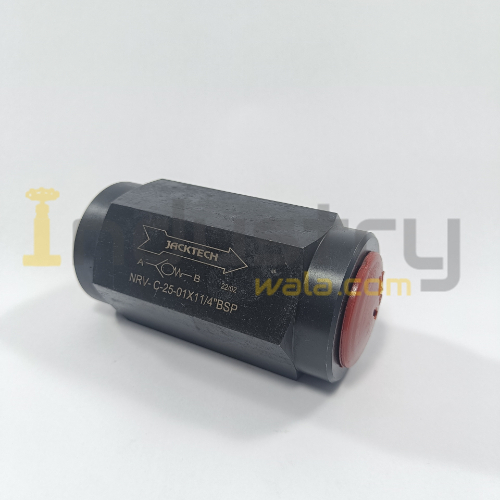

Hydraulic Non Return Valve Screwed End 1/4″ to 11/2″

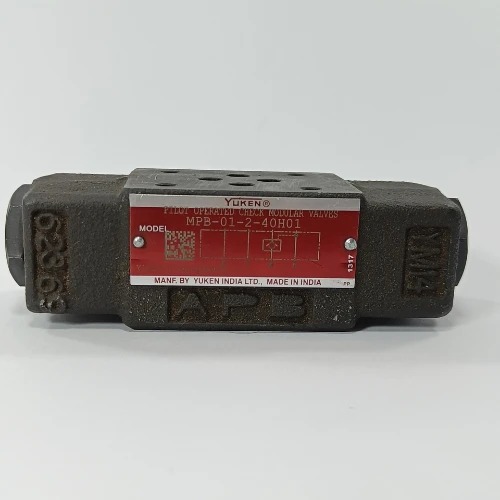

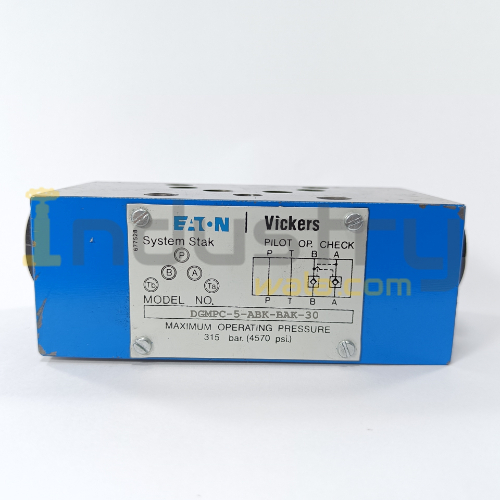

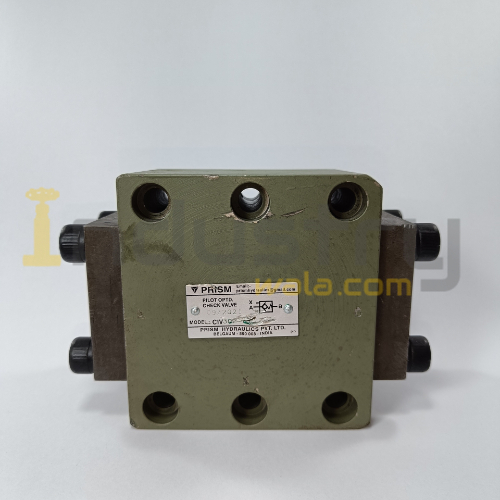

WHAT IS A CHECK OR NON-RETURN VALVE AND WHY DO YOU NEED IT? A check valve is the simplest type of directional control valve used in hydraulic systems. Check valves stop the flow of fluid in one direction and allow free flow in the opposite direction. They are also known as non-return valves. Check valves may be used as prefill valves, bypass valves, pre-tensioning or protection of hydraulic components against pressure surges. Most check valves are spring-loaded and use a ball or plate to seal the flow in one direction. Check valves are designed with seats and thus are able to isolate circuits with no leakage. Balls, plates, poppets or poppets with soft seals are used as isolating elements. There is a special type of check valve that prevents pistons or cylinder plungers from coming down and causing accidents. This is called a line rupture valve. When the line ruptures, the flow through the line rupture valve increases substantially, causing an increased pressure drop. This in turn creates a stronger force on the ball, which will close immediately. Other special types of check valves are pilot-operated check valves and shuttle valves. A pilot-operated check valve allows flow in either direction by application of an external pilot pressure signal. A shuttle valve permits free flow at the highest operating pressure. FAQs for Hydraulic Non Return Valve (Screwed End): How does a hydraulic non return valve help prevent backflow in hydraulic systems?A hydraulic non return valve allows fluid to flow in only one direction, preventing backflow that can damage pumps, cylinders, and other hydraulic components. Is a hydraulic non return valve suitable for high-pressure applications?Yes, a hydraulic non return valve is designed to withstand high-pressure hydraulic operations, ensuring reliable sealing and smooth flow control in demanding environments. How do I select the right size hydraulic non return valve for my system?Choosing the right hydraulic non return valve depends on your line size and flow rate; selecting from 1/4″ to 1½″ ensures proper compatibility and optimal performance in your hydraulic setup. What maintenance is required for a hydraulic non return valve to ensure long service life?Maintenance of a hydraulic non return valve includes checking for contamination, inspecting the internal spring and sealing surfaces, and ensuring the valve opens and closes smoothly without blockage. SKU: TJJHG Categories: Hydraulic Check Valves, Hydraulic Pipe Fittings and Accessories, Hydraulics Tags: high pressure non return valve, high pressure nrv, hydraulic non return valve, hydraulic nrv, non return valve for hydraulic, nrv for hydraulic
