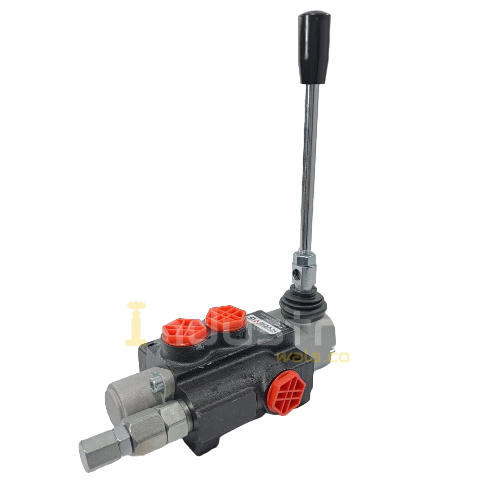

Hydraulic Lever Operated Monoblock Direction Control Valve P-80 (80 LPM) With Built in Check Valve and Pressure Relief Valve

Hydraulic Control Valve Features Common Uses: Operate hydraulic cylinders (Double-Acting or Single-Acting) Operate hydraulic motors (“D” Spool Required) Install rear remotes on a tractor Benefits: Low weight, small dimensions Operating pressure up to 315 bar Excellent price/performance ratio Elimination of potential leakage between sections Easy maintenance All spools are standard double acting with spring return to neutral position, which are ideal for double acting cylinders Used for open center systems (Pump to Tank Flow) – closed center option available SAE O-Ring ports ensure solid seal and prevent blockages Vertical or horizontal hydraulic lever mount Adjustable Relief Valve Range: 1500 to 3625 PSI Preset Pressure Relief: 2610 PSI The control is easily managed via a hydraulic lever mechanism, providing precise operation for cylinders and motors. FAQs for Hydraulic Lever Operated Monoblock Direction Control Valve P-80: Q1: How does a hydraulic lever control the direction of flow in a monoblock valve?A1: A hydraulic lever allows the operator to manually shift the spool inside the monoblock valve, directing hydraulic fluid to different ports and controlling the movement of cylinders or actuators with precision. Q2: Is a hydraulic lever system suitable for high-flow applications like P-80 (80 LPM)?A2: Yes, a hydraulic lever paired with a P-80 monoblock valve is designed to handle high-flow rates up to 80 LPM, ensuring smooth, responsive operation in heavy machinery such as loaders, tractors, and industrial hydraulics. Q3: Does the hydraulic lever-operated valve include safety features for pressure control?A3: Yes, the hydraulic lever valve includes a built-in check valve and pressure relief valve, providing protection from backflow, system overload, and pressure spikes during operation. Q4: What maintenance does a hydraulic lever monoblock valve require for long-term use?A4: A hydraulic lever monoblock valve requires regular inspection of seals, checking for spool movement smoothness, monitoring hydraulic oil cleanliness, and ensuring the lever mechanism operates without resistance. SKU: 52713 Categories: Hydraulics, Manual Directional Control Valves Tags: handle valve, hydraulic hand lever valve, hydraulic mcv, hydraulic mobile control valve, hydraulic monoblock valve, mobile control valve, monoblock control valve, p-84, p80, tractor lever valve
