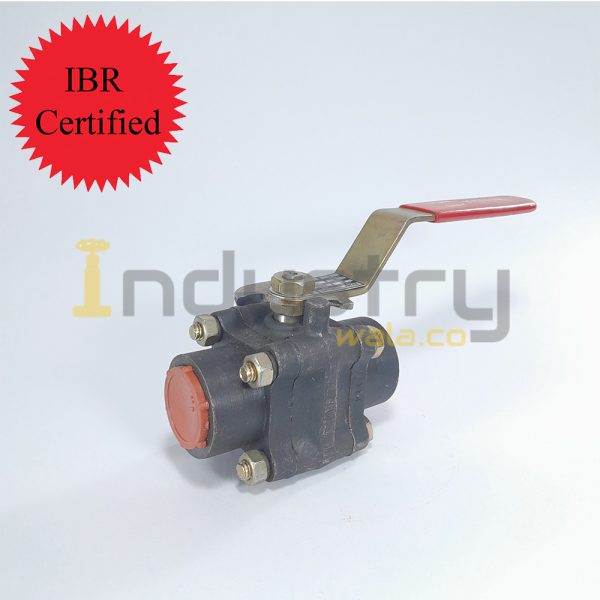

Forged Steel A-105 IBR Certified Ball Valve Class 800#

ANSI Class 800 Ball Valves are covered in API 608. Class 800 is not a listed class designation, but is an intermediate class number widely used for socket welding and threaded end compact valves. Suitable for use across Petrochemical, Steam, Mining and Industrial applications. All sizes for Class 800 ball valves comply with ASME B16.34 and API 608 standards. Available extended socket weld and screwed ends allow welding into the piping without disassembly. Each valve of Class 800 ball valve is tested to API 598, and all valves comply with API 607 6th Edition for Fire-Safe performance. Class 800 ball valves are made of forged steel, to avoid the risk of leakage from the valve body. Features: Anti-static, Blowout-proof stem, Lockable at full open and close position, 2 PC or 3PC body Design: ASME B16.34/API 608/BS 5351/ISO 17292 Test: API 598 End Connections • BSP thread: ISO228 • Socket Weld : ASME B16.11 FAQs – Forged Steel A-105 IBR Certified Ball Valve Class 800# What is a Forged Steel A-105 IBR Certified Ball Valve Class 800# used for in industrial applications? A Forged Steel A-105 IBR Certified Ball Valve Class 800# is used for on-off flow control in high-pressure steam, oil, gas, and chemical pipelines, offering superior strength and IBR compliance for critical industrial systems. Is the Forged Steel A-105 Ball Valve suitable for extreme high-pressure service up to Class 800#? Yes, the Forged Steel A-105 Ball Valve Class 800# is specifically designed for extreme high-pressure applications, providing exceptional durability, leak-tight sealing, and reliable performance in demanding industrial and boiler environments. How does Forged Steel A-105 material enhance the performance of an IBR Certified Ball Valve? Forged Steel A-105 material offers high tensile strength, excellent impact resistance, and superior pressure-handling capability, making the IBR Certified Ball Valve ideal for high-temperature and high-pressure piping systems. Can the Forged Steel A-105 IBR Certified Ball Valve be used in IBR-regulated boiler and steam lines? Yes, the Forged Steel A-105 IBR Certified Ball Valve Class 800# is fully approved for IBR-regulated boiler, steam, and pressure piping applications where certified, code-compliant valves are mandatory for safe operation. SKU: 81f21c0fab03 Categories: IBR Ball / Gate / Globe Valves, IBR Ball Valves, IBR Certified Boiler Valves Tags: a 105, a105, ball valve, class 800, forged steel, fs, handle valve, IBR, ibr certified
