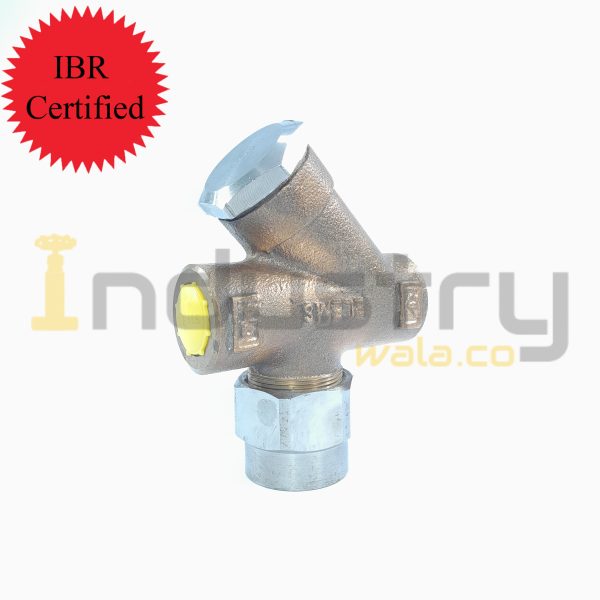

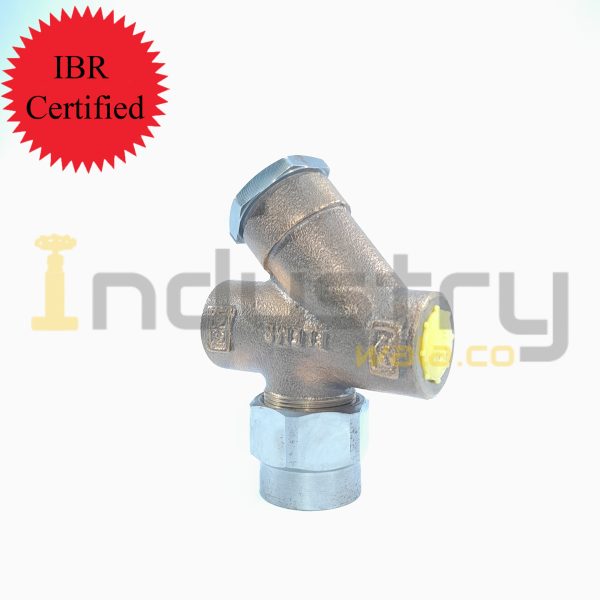

Bronze IBR Certified Steam Trap Thermodynamic Screwed End

What is a Steam Trap? A steam trap is an automatic valve that holds the steam at the load until it gives up its heat energy and condenses to water (condensate). After the steam condenses to water, the steam trap allows only the condensate to pass, thereby contributing to plant efficiency. Thermodynamic Steam Trap: The thermodynamic trap is an extremely robust steam trap with a simple mode of operation. The trap operates by means of the dynamic effect of flash steam as it passes through the trap. The only moving part is the disc above the flat face inside the control chamber or cap. On start-up, incoming pressure raises the disc, and cool condensate plus air is immediately discharged from the inner ring, under the disc, and out through three peripheral outlets. Hot condensate flowing through the inlet passage into the chamber under the disc drops in pressure and releases flash steam moving at high velocity. This high velocity creates a low pressure area under the disc, drawing it towards its seat. At the same time, the flash steam pressure builds up inside the chamber above the disc, forcing it down against the incoming condensate until it seats on the inner and outer rings. At this point, the flash steam is trapped in the upper chamber, and the pressure above the disc equals the pressure being applied to the underside of the disc from the inner ring. However, the top of the disc is subject to a greater force than the underside, as it has a greater surface area. Eventually the trapped pressure in the upper chamber falls as the flash steam condenses. The disc is raised by the now higher condensate pressure and the cycle repeats. WHAT IS IBR? IBR i.e. Indian Boiler Regulations is the law of India, which was created on 15th September 1950 in the exercise of the powers conferred by section 28 & 29 of the Indian Boilers Act. It governs design, manufacture, installation and operation of all steam producing vessels which fall under its purview. It defines a boiler as a steam producing vessel having the capacity of more than 5 gallons (25 liters). IBR boilers mean any closed vessel exceeding 25 liters in capacity and which is used expressively for generating steam under pressure and includes any mounting or other fitting attached to such vessel which is wholly or partly under pressure when the steam is shut off. FAQs – Bronze IBR Certified Steam Trap Thermodynamic Screwed End What are the key advantages of using Bronze IBR Certified Steam Trap in different boiler valves types applications?The Bronze IBR Certified Steam Trap ensures efficient condensate discharge and energy savings, making it an ideal choice among boiler valves types for industrial and process steam systems. How does a Thermodynamic Screwed End Steam Trap enhance the performance of boiler valves types in high-pressure systems?A Thermodynamic Screwed End Steam Trap offers rapid opening and closing under pressure, optimizing condensate removal and reliability, which is a crucial factor in selecting boiler valves types for steam applications. Can Bronze IBR Certified Steam Trap reduce maintenance in various boiler valves types setups?Yes, the durable construction and self-operating mechanism of the Bronze IBR Certified Steam Trap minimize manual intervention and extend service life, making it a preferred option among boiler valves types. Is the Thermodynamic Screwed End Steam Trap compatible with standard piping and other boiler valves types?Absolutely, its screwed-end design allows easy installation with standard pipe fittings, ensuring seamless integration with other boiler valves types in existing steam systems. SKU: 2040f665c45e Categories: IBR Certified Boiler Valves, Other IBR Certified Valves Tags: ibr certified, ibr steam trap, steam trap, thermodynamic steam trap, trap valve
