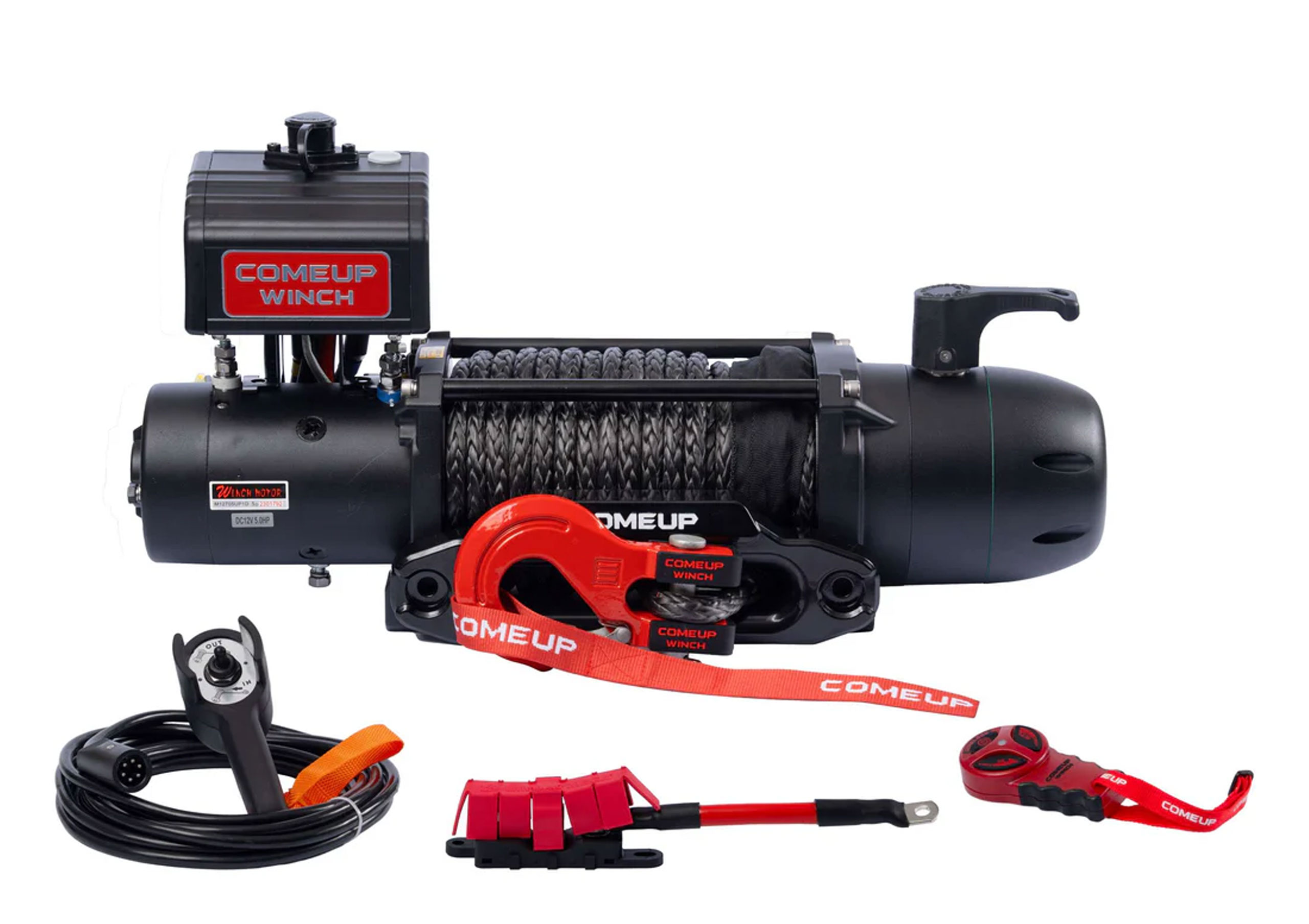

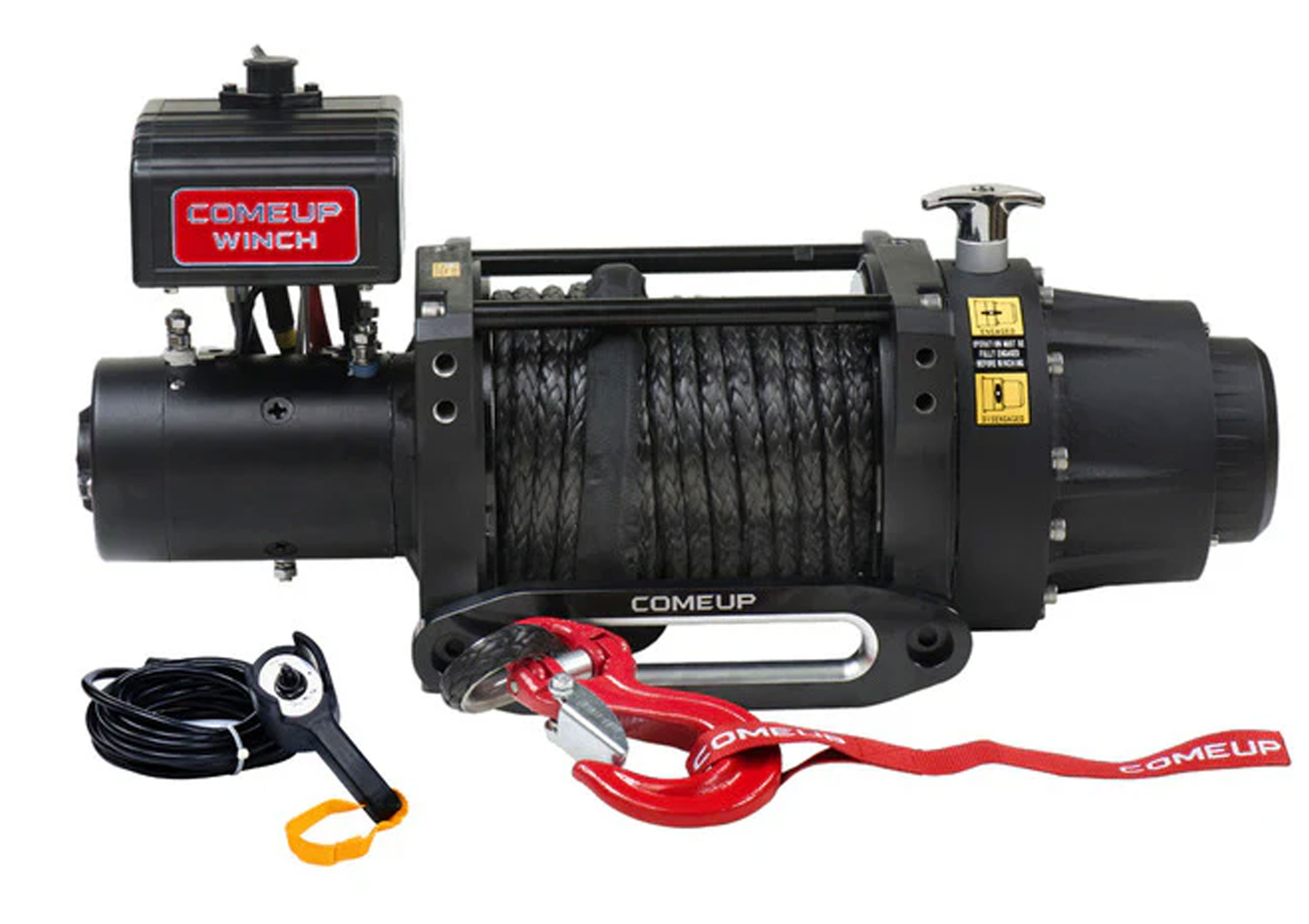

ComeUp Winch – SEAL Gen2 16.5s – 12V

Line Speed and Amp. Draw (1st layer of wire rope on the drum): Line Pull (kg / lb) Line Speed (mpm / fpm) Amp Draw (A) No Load 5.6 / 18.4 50 1,814 / 4,000 3.0 / 9.8 90 3,629 / 8,000 2.5 / 8.2 180 4,536 / 10,000 1.9 / 6.2 230 7,484 / 16,500 1.4 / 4.6 355   Line Pull and Rope Capacity: Layer of Rope Pull by Layer (kg / lb) Total Rope on the Drum (m / ft) 1st 7,484 / 16,500 5.2 / 17.1 2nd 6,125 / 13,503 11.6 / 38.1 3rd 5,184 / 11,429 19.2 / 63.0 4th 4,494 / 9,908 25.0 / 82.0   Specifications: Rated Line Pull 16,500 lbs (7,484 kg) single line Motor 5.8 hp / 4,325w 12V Series Wound Gear Ratio 3-Stage Planetary 343:1 Clutch (freespooling) Rotating Ring Gear Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure) Winch Construction Aluminum Die Cast Housing with Steel Drum Drum Size 3.5″ x 8″ (89 x 204 mm) Control waterproof remote with thermometric indicator LED w/17′ (5 m) cord Rope Type Synthetic Rope Rope Size 1/2″ x 82′ (12 mm x 25 m) Mounting Bolt Pattern 10″ x 4.5″ (254 x 114 mm), 10″ x 6.5″ (254 x 165 mm) Winch Weight 132 lb (60 kg) Gross Weigh 150 lb (68 kg) Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components Box Dimensions 27.2″ x 10.6″ x 15.9″ (690 x 270 x 405 mm)
