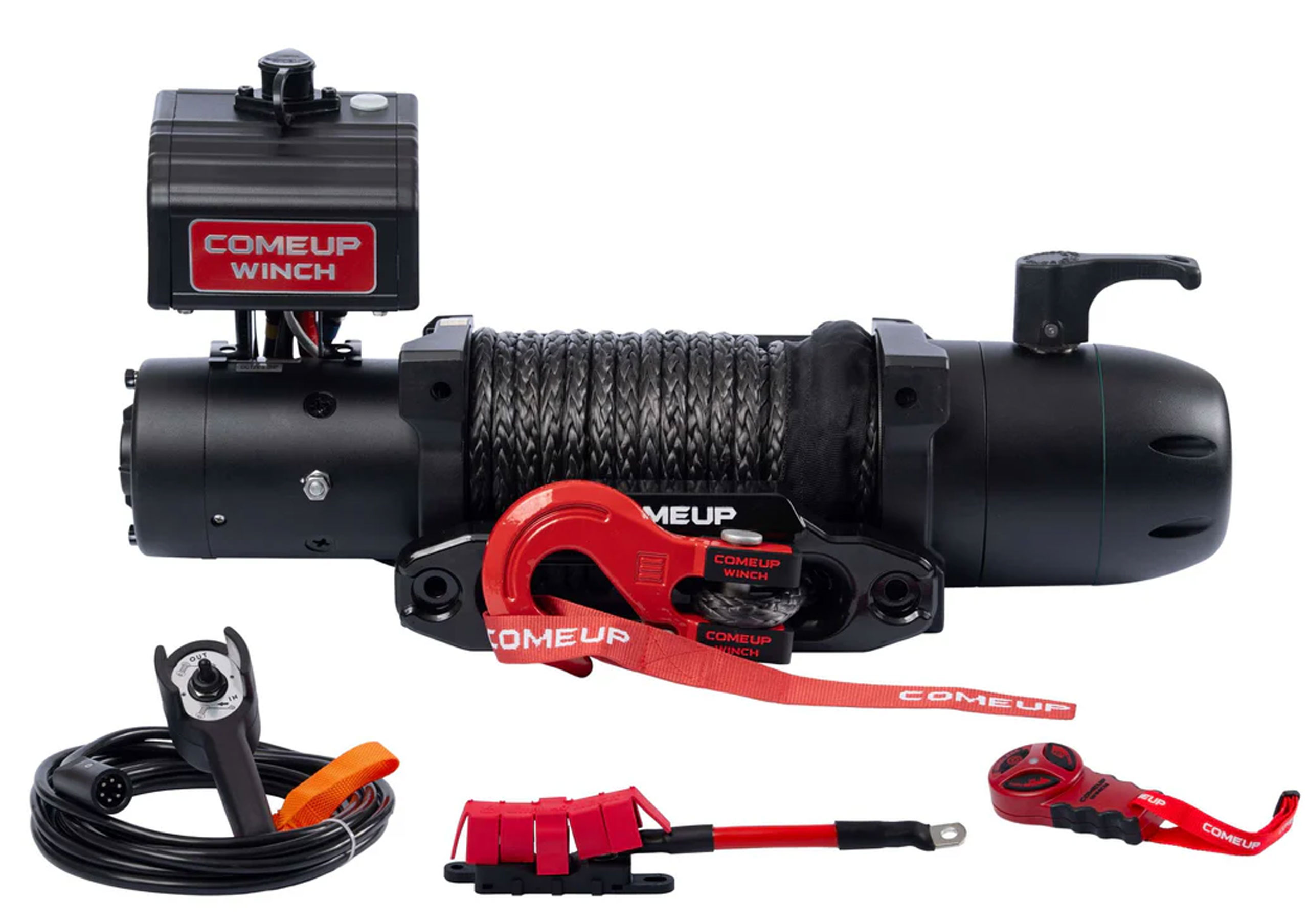

ComeUp Winch – Slim 12.5rs – Trail Edition

Introducing the COMEUP Slim 12.5rs Trail Edition, the ultimate winch designed for overland expedition use. Packed with Trail Edition features, including the innovative BossHook-M and a specialized winch fuse kit for superior functionality and protection. Line Speed and Amp. Draw (1st layer of wire rope on the drum): Line Pull (kg / lb) Line Speed (mpm / fpm) Amp Draw (A) No Load 7.7 / 25.3 45 907 / 2,000 3.4 / 11.2 75 1,814 / 4,000 2.5 / 8.2 160 2,722 / 6,000 2.0 / 6.6 230 3,629 / 8,000 1.7 / 5.6 300 5,670 / 12,500 0.9 / 3.0 470   Line Pull and Rope Capacity: Layer of Rope Pull by Layer (kg / lb) Total Rope on the Drum (m / ft) 1st 5,670 / 12,500 4.8 / 15.7 2nd 4,499 / 9,919 10.9 / 35.7 3rd 3,729 / 8,221 18.5 / 60.7 4th 3,184 / 7,020 21.0 / 69.0   Specifications: Rated Line Pull 12,500 lbs (5,670 kg) single line Motor 5.0 hp / 3,730 w 12V Series Wound Gear Ratio 3-Stage Planetary 225:1 Clutch (freespooling) Rotating Ring Gear Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure) Winch Construction Aluminum Die Cast Housing with Steel Drum Drum Size 2.5″ x 8.9″ (63.5 x 227 mm) Control Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17′ (5 m) cord Rope Type Synthetic Rope Rope Size 7/16″ x 69′ (11 mm x 21 m) Mounting Bolt Pattern 10″ x 4.5″ (254 x 114 mm) Winch Weight 61.7 lb (28 kg) Gross Weigh 89.1 lb (40.5 kg) Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components Box Dimensions 26.9″ x 8.2″ x 16.9″ (682 x 209 x 430 mm)
