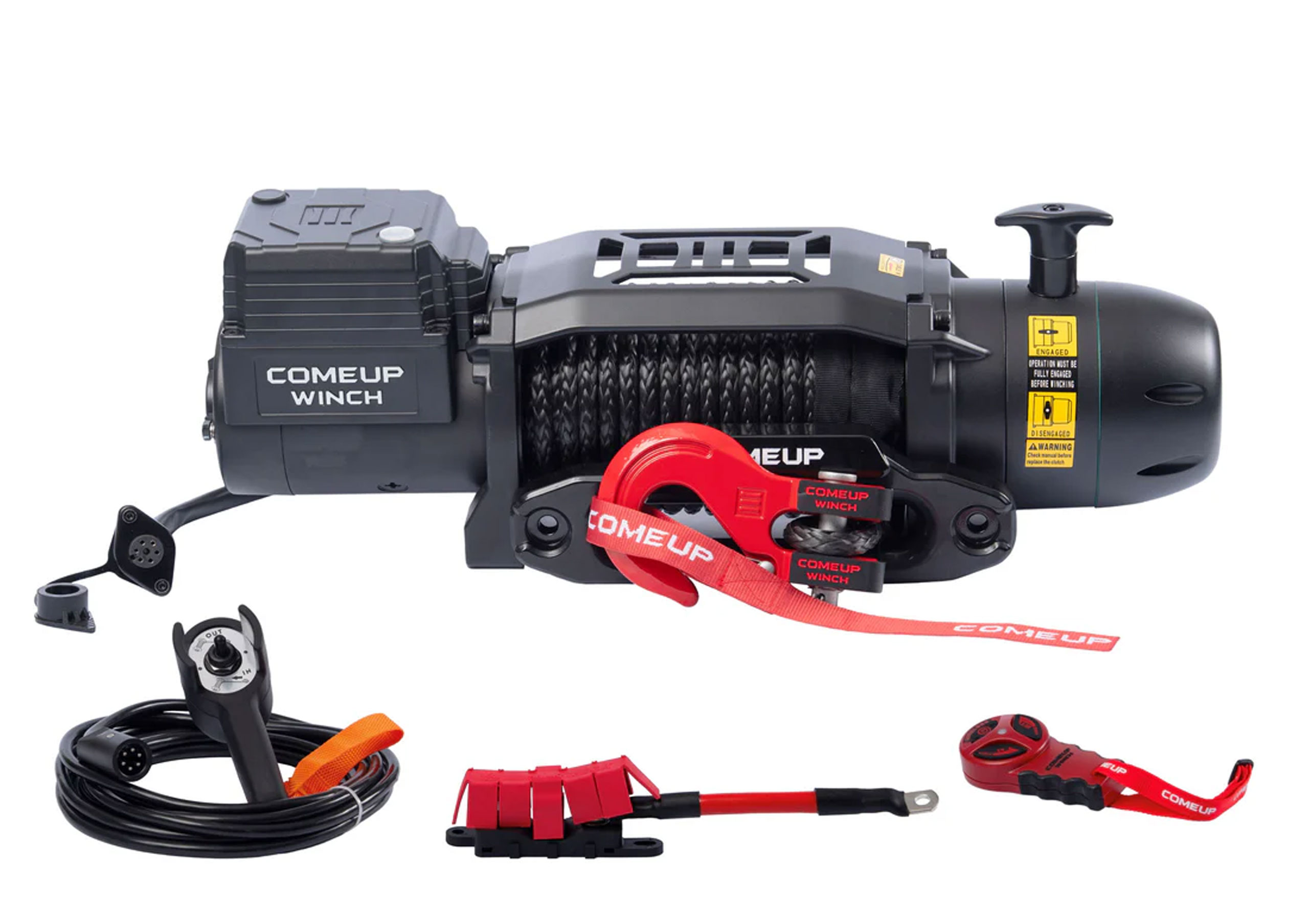

ComeUp Winch – Slim 9.5rsi – Trail Edition

The Slim 9.5rsi Trail Edition is here. We engineered an integrated control box and motor, creating a single, radically compact unit. The result is a winch that disappears into your vehicle with a seamless, low-profile installation. It’s not just how it looks. It’s how it works. Featuring the innovative BossHook M and a specialized fuse kit for a new level of protection and capability. Line Speed and Amp. Draw (1st layer of wire rope on the drum): Line Pull (kg / lb) Line Speed (mpm / fpm) Amp Draw (A) No Load 14.8 / 48.6 60 907 / 2,000 4.8 / 15.7 115 1,814 / 4,000 3.6 / 11.8 210 2,722 / 6,000 2.8 / 9.2 245 3,629 / 8,000 2.3 / 7.6 280 4,309 / 9,500 2.2 / 7.2 380   Line Pull and Rope Capacity: Layer of Rope Pull by Layer (kg / lb) Total Rope on the Drum (m / ft) 1st 4,309 / 9,500 5.1 / 16.7 2nd 3,472 / 7,655 11.7 / 38.4 3rd 2,908 / 6,410 19.7 / 64.6 4th 2,501 / 5,514 23.2 / 76   Specifications: Rated Line Pull 9,500 lbs (4,309 kg) single line Motor 5.0 hp / 3,730 w 12V Series Wound Gear Ratio 3-Stage Planetary 159:1 Clutch (freespooling) Rotating Ring Gear Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure) Winch Construction Aluminum Die Cast Housing with Steel Drum Drum Size 2.5″ x 8.9″ (63.5 x 227 mm) Control Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17′ (5 m) cord Synthetic rope 3/8” x 76’ (10 mm x 23.2 m) Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components Box Dimensions 26.9″ x 8.2″ x 16.9″ (682 x 209 x 430 mm)
