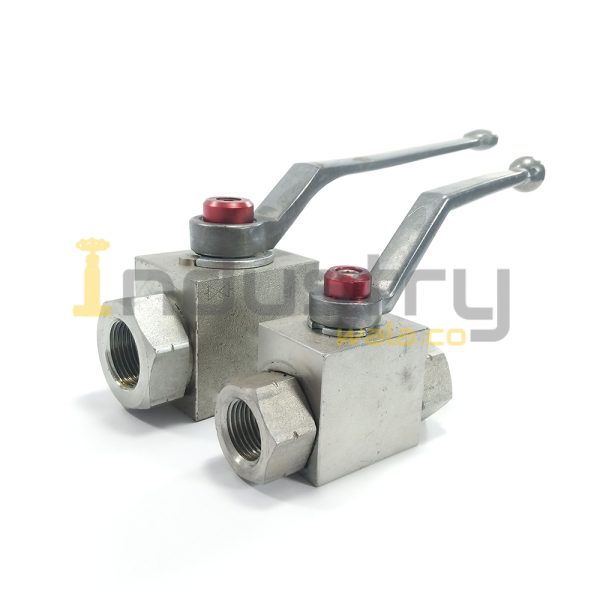

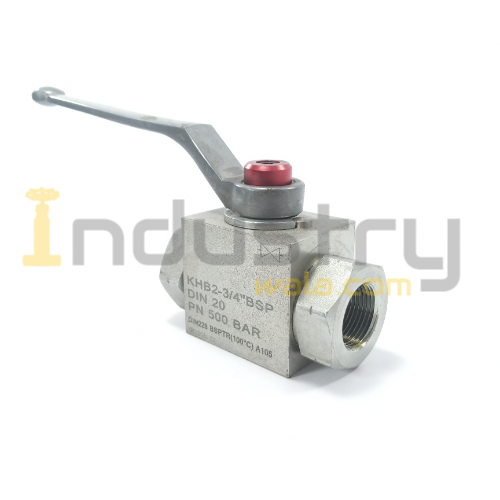

Hydraulic High Pressure Ball Valve upto 500Kg/Cm2 Pressure

High pressure ball valves are designed to control fluid in full open and full close position. Ball Valves are suitable for installation in piping systems with connections at the same pressure load and corresponding connections or between flanges of the same pressure load and the same flange connection. ​It provides unrestricted flow of fluids and a way to shut off that flow using the attached handle. They are connected through robust stem and anti-blowout stem and are built to contain a different volume of pressure when the valve is the closed position. As opposed to low pressure ball valves, high pressure ball valves are typically used to withstand high operating pressures and they keep streams of fluid and other media under control and allow the system fluid to pass through. High pressure ball valves are highly durable due to the high quality production and good performing after several cycles. It can withstand a pressure of up to 700 bars. It is subjected to the valve size. When the valve size goes bigger, the valves pressure goes lower. ​The size ranges available from 1/8″ to 4″. The common running sizes are from 1/2″ to 2″. ​It has a different combination of valve material code that allows customize of temperature range. MHA valve recommended temperature range is -20°C to 100°C for steel material and -30°C to 100°C for SS316 valves material.​ FAQs – Hydraulic High Pressure Ball Valve upto 500Kg/Cm² Pressure: 1. How does a high pressure ball valve manage flow effectively under extreme pressures?A high pressure ball valve ensures precise opening and closing, providing reliable control of fluid flow even under pressures up to 500Kg/Cm², making it ideal for demanding hydraulic applications. 2. Is the high pressure ball valve suitable for corrosive or abrasive media?Yes, the high pressure ball valve is built from robust materials that resist corrosion and abrasion, allowing safe operation with a variety of fluids, including chemicals and oils. 3. Does the high pressure ball valve enhance safety in high-pressure hydraulic systems?Absolutely. The high pressure ball valve minimizes manual handling and potential leak points, enhancing operational safety in high-pressure environments. 4. Can the high pressure ball valve be easily integrated into existing piping systems?Yes, the high pressure ball valve is designed for straightforward installation in compact layouts, ensuring secure connections and efficient performance in hydraulic systems. SKU: 2348807bdf49 Categories: High Pressure Manual Valves, Hydraulics Tags: 5000 psi ball valve, 500kg ball valve, high pressure ball valve, hydraulic ball valve, hydraulic valve, hydrolik ball valve, hydrolik valve
